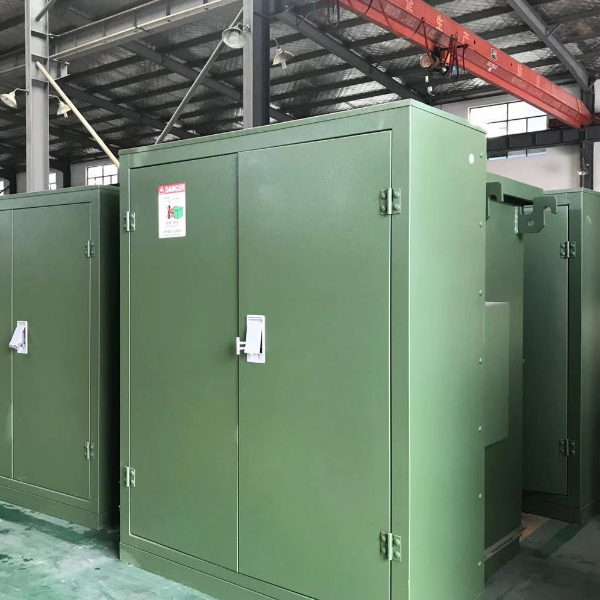

35kV Three Phase Pad Mounted Transformer

Loop feed (6 HV Bushings) or

Radial feed (3 HV Bushings)

35KV Voltage Rating:

34.5KV DELTA or 34.5GRDY/19.92KV or others

To 480Y/277V; 415Y/240V or others

Capacity: Under 4000kVA (With UL)

Frequency: 50Hz/60Hz (Based on project)

Warranty: 2 years

Inquiry Now

Pad mounted Transformer Specification

Rated Capacity	Under 4000kVA with UL
Input Voltage	35kV, 34.5kV or others
Output Voltage	415/240V, 480/277V or others
Connection Group	Dyn1 / YNyn0
Standard	ANSI/IEEE or CSA
Warranty	2 years

Three Phase Pad Mounted TransformerDescriptions

35kV Class Pad-Mounted Transformers Introduction

35kV class Pad-mounted Transformer is the PSU (power supply unit) for the crypto mining farms, data centers; and they are the Power Distribution Device of the solar farms, wind farms, and for the utility transformer industry. They can transfer 35kV class power to 415/240V, 480/277V, and other power based on customers' needs.

Questions you need to know before purchase

1. What is the information you should know before making your order?

Before purchasing your pad-mounted transformer, knowing some technical specifications of pad-mounted transformers is very important. Daelim engineer team will work on the detailed parts for you, but it's still useful to know some basic parts as below:

1) Primary voltage – Also called High Voltage, Input Voltage. It is the voltage that is provided by the utility. For Pad-mounted Transformer, primary voltage usually has 3 classes: 35kV, 25kV, and 15kV. Daelim can produce based on customer's needs, dual voltage is also available.

2) Secondary voltage – Also known as Low Voltage, Output Voltage. This is the voltage that will power your bitcoin miner or other equipment. Normally there are 415Y/240V, 480Y/277V, etc... Other low voltage classes are also able to design by the Daelim engineer team. Double low voltage is available.

3) Rated capacity – This is the total power that the transformer provides. 2000kVA, 2500kVA, 3000kVA are wildly used for bitcoin mining. Daelim can produce up to 4000kVA with UL listed, higher capacity is also available. For example, a 5MW will need 5000kVA Rated Capacity; a 100MW mining farm will need 100,000kVA, which are 40 units of 2500kVA pad-mounted transformer.

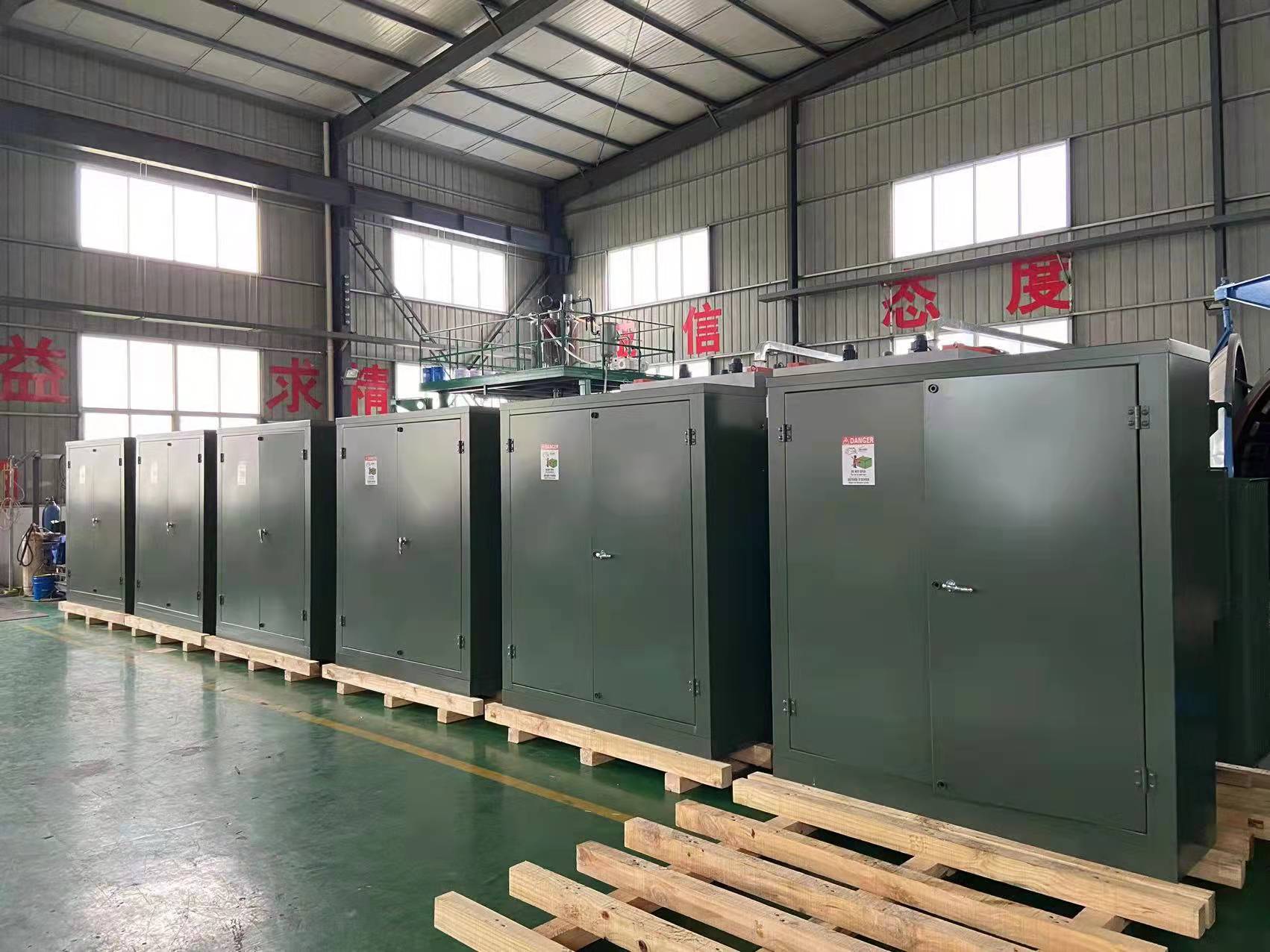

2. Pad-Mounted Transformer Production Process

Mainly production processes are winding, drying, assembly. Before production, our engineer team will design the transformer based on the customer's requirements. After the customer confirms our production drawing, the Daelim purchase team will start to prepare the materials. When the production is finished, we will do the FAT testing in our factory, send the test report to the customer for confirmation. If everything is confirmed by the customer, our professional packing team will arrange the packing by the wooden box or based on requirements. Then send to Shanghai port and ready to go!

3. How to design a Pad-Mounted Transformer?

Pad-mounted transformer is Daelim's HOT selling product, with hundreds of units of experience, our engineer team is very familiar with the ANSI/IEEE & CSA standards pad-mounted transformer design. With such an experienced engineering team, Daelim's design time is the fastest in the market.

The Pad-mounted Transformer will be well designed, produced, and tested before ship to our customers. The customer only needs to do easy installation work after the transformer arrives at the site. Easy and fast.

For the USA market, our Pad-mounted transformer is designed by ANSI/IEEE C57.12.00 (general standard), C57.12.34 (pad-mounted transformer standard), and tested by ANSI/IEEE C57.12.90 standard.

For the Canadian market, our Pad-mounted transformer is designed by CSA C227.4-06 standard.

With an experienced engineering team, professional purchase team, and hard-working packing team + shipping agent, Daelim Pad-mounted Transformer has the fastest lead time, trusted quantity, and safest shipping solution. Which is especially important for Bitcoin Mining and utility projects.

Technical Specification

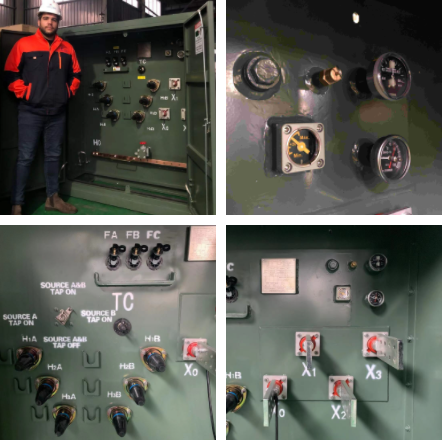

Standard Features

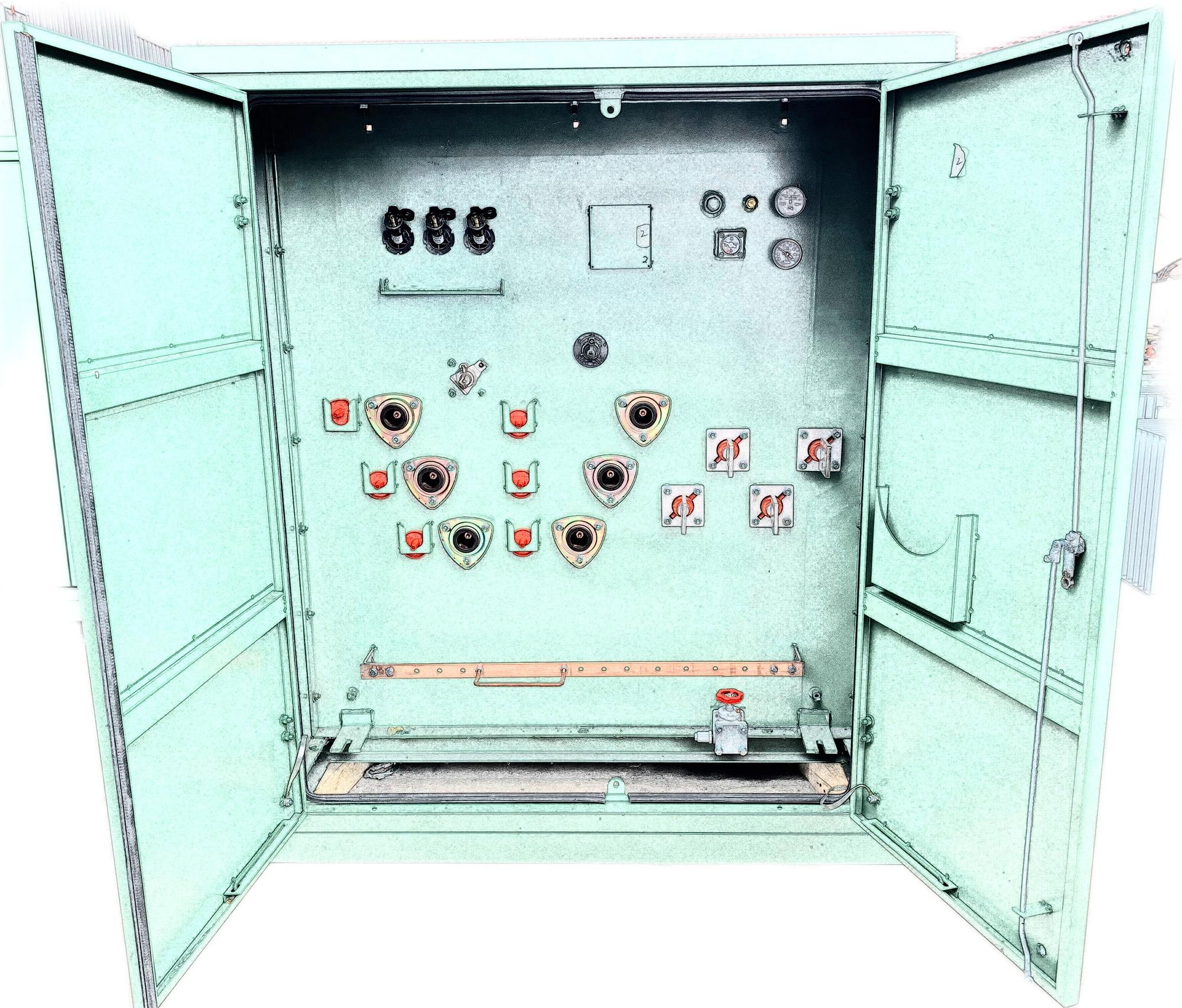

Live Front or Dead Front

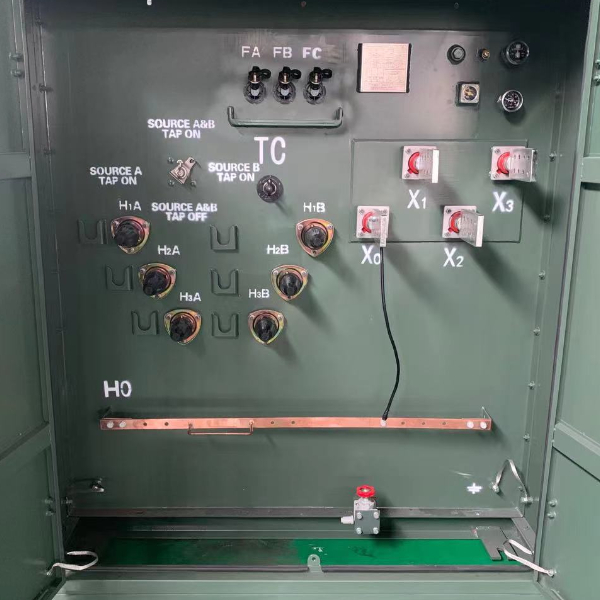

Loop or Radial Feed
Liquid Level / Temp Gauges
Pressure Vacuum Gauge
Drain Valve and Sampler
Non-PCB Type II Mineral Oil or High Flash-Point Natural Ester Fluid
Upper Filter Press Connection
Pressure Relief Valve
NEMA Two-Hole Ground Pad

Optional Features

50 Hz Frequency

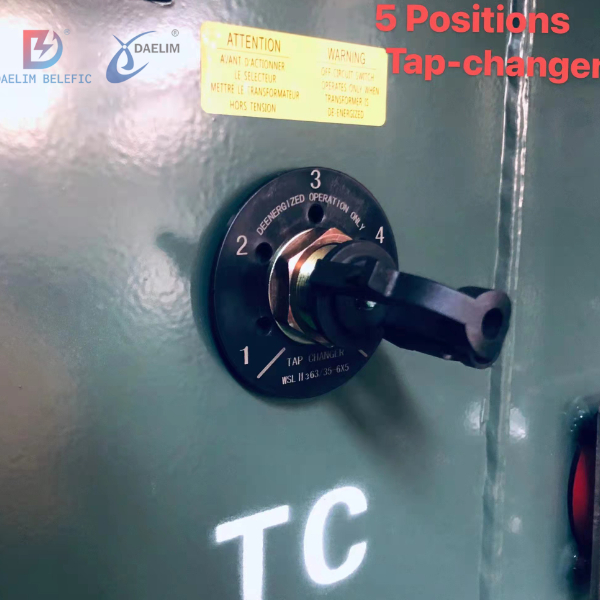

55/65° Temperature Rise
Dead Front Connection Parts

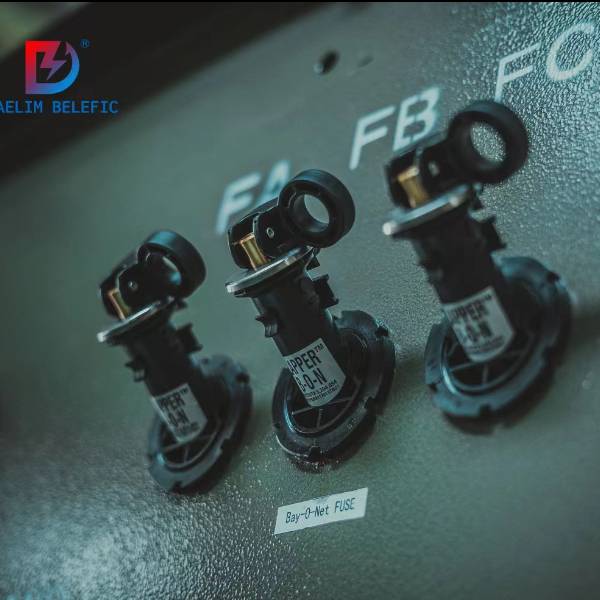

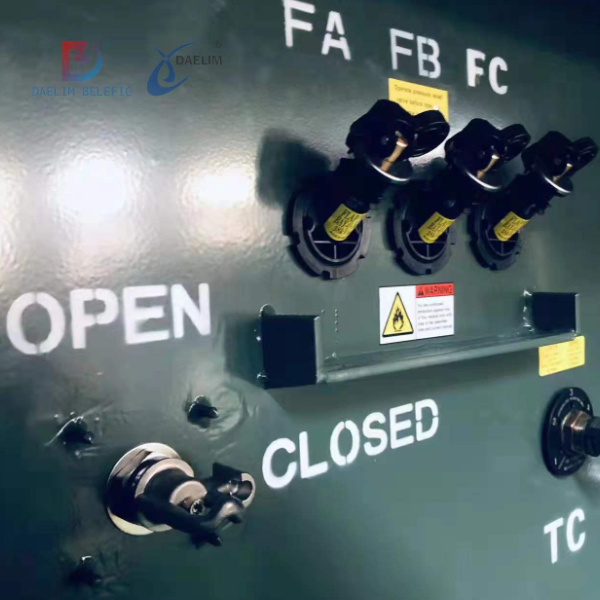

Bayonet And Current Limiting Fuses
Load break Oil Sectionalizing Switches
Secondary Mold-Case Breakers
Lighting Arresters
Metering Package
CT’s and PT’s
Contacts
…and much more!

Factory Test

Our reconditioning process includes, but is not limited to:

TTR Testing
Megger Testing
HV and LV Winding Resistance Testing
Phase Polarity Testing
Impedance Testing
No Load and Load Loss Testing
Oil Dielectric Sampling
Pressure Testing
and DOBLE Testing (upon request)

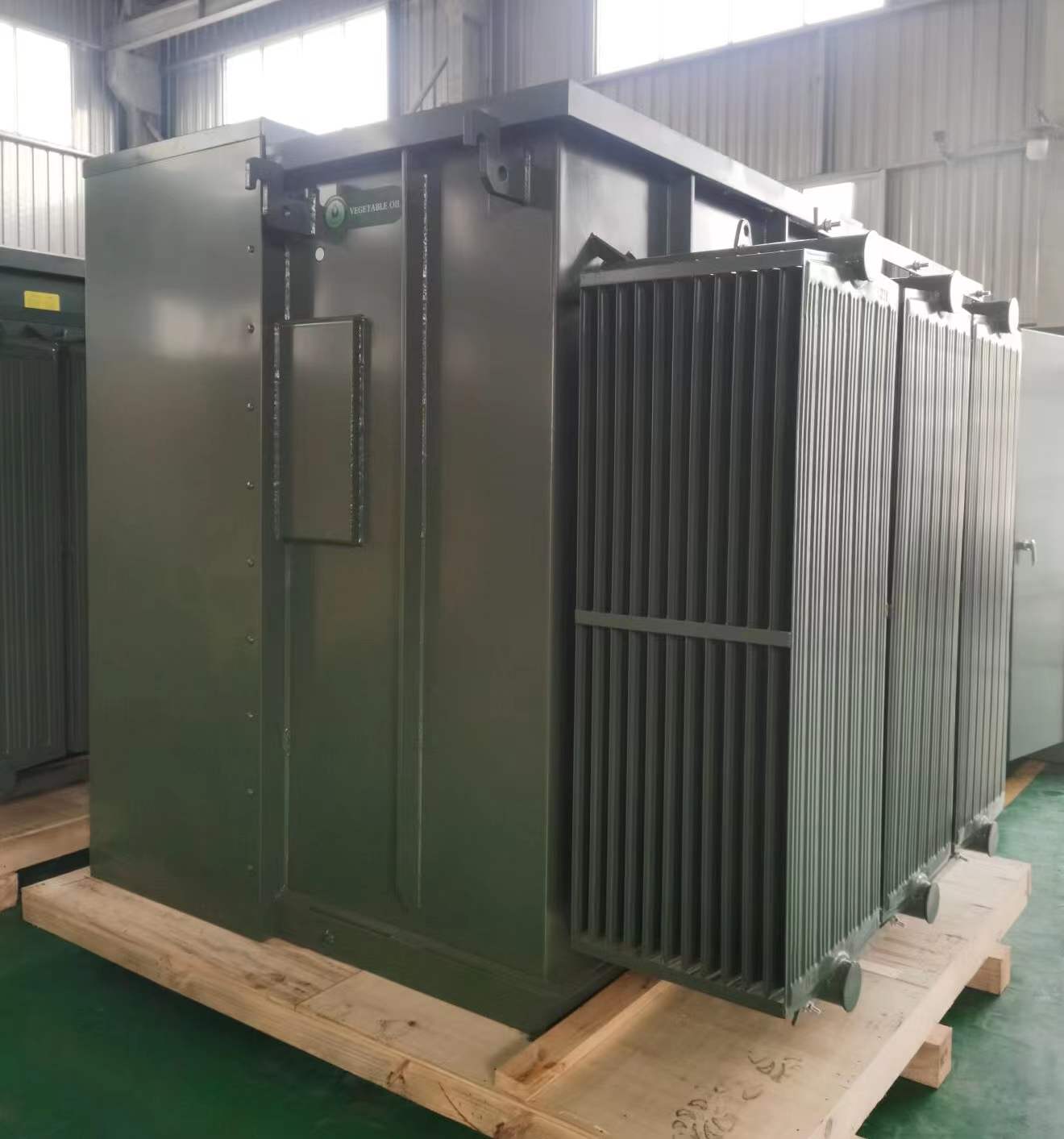

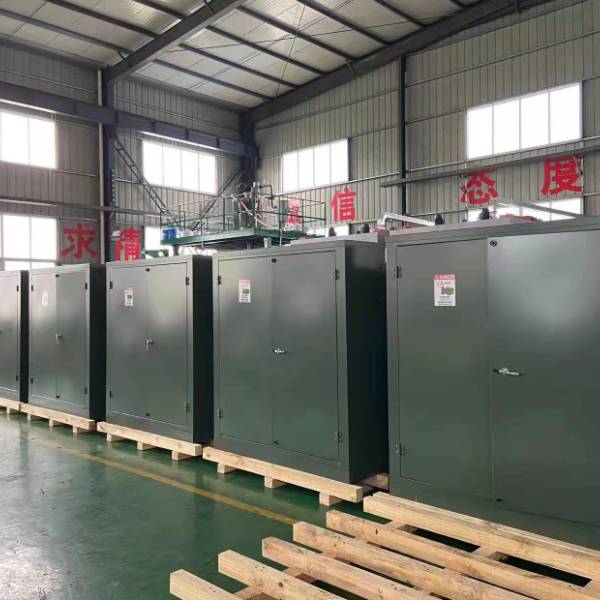

Packaging & Delivery

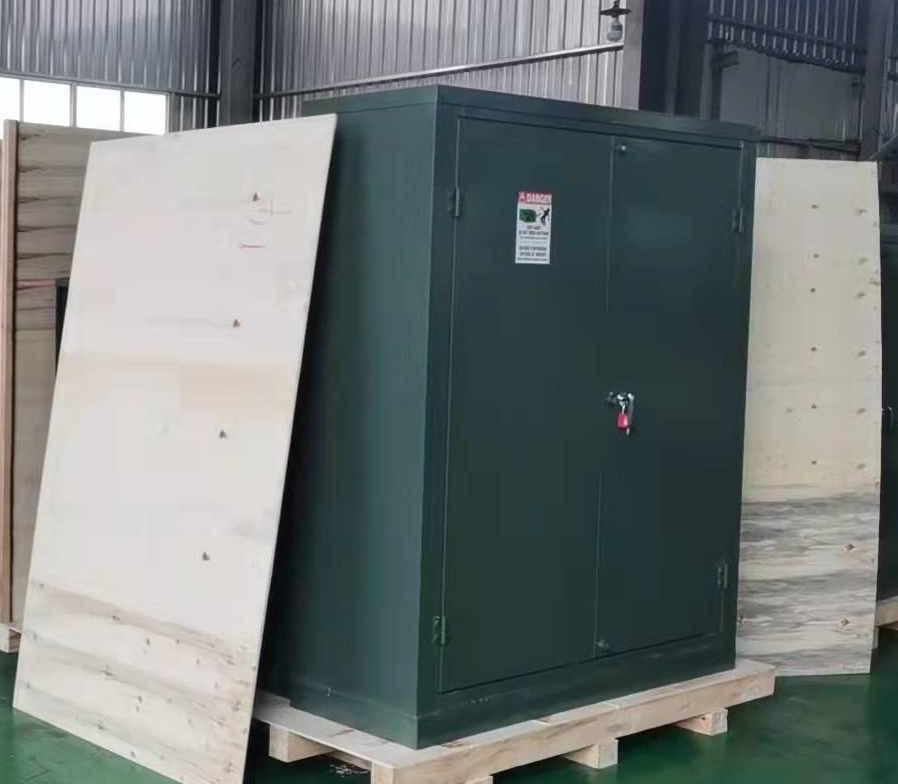

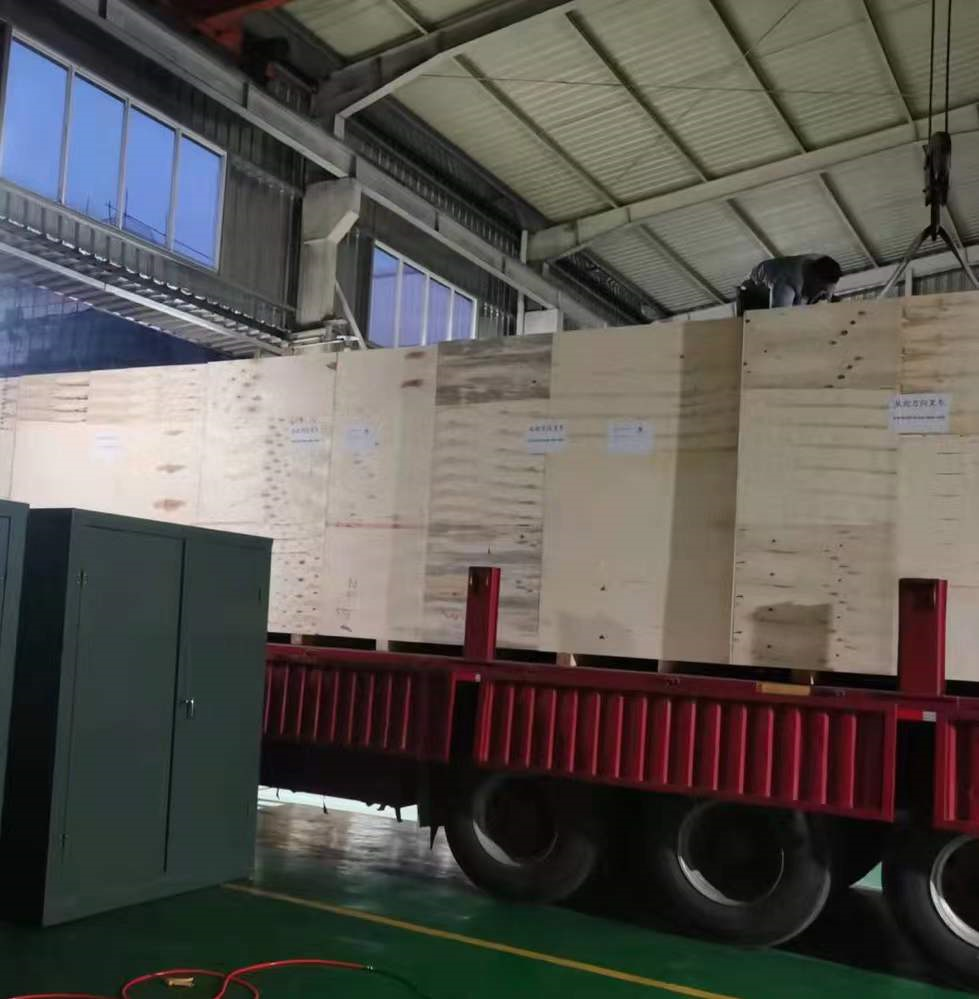

After years of updates and constant adjustments to our packaging plan, finally, through communication with industry experts and international market customers, we finally decided to use at least two layers of wooden pallets for transformer packaging under 3 tons and transformer packaging over 3 tons. Use at least three layers of wooden supports to confirm the center of gravity of the transformer and fix it with rivets. In addition, it also provides customers with two packaging solutions, one is a wooden pallet, and the other is a fully enclosed wooden box. All exported transformer woods are solid wood fumigation logs and have an English fumigation certificate issued by a professional organization.

Packaging Details: International wooden cases or according to clients’ request.

Shipping: Land transportation/Ocean shipping/Air transport(based on project)
Our transformers have been shipped all around the world, with an extensive logistic network, we provide the best shipping for our customers.

Years of business experience makes us do more safe packing and fast shipping to our customers all around the world!

Certification

Through years of experience in international transformer manufacturing, Daelilm can produce transformers based on international standards such as IEC, CSA, ANSI/IEEE, AS, etc...

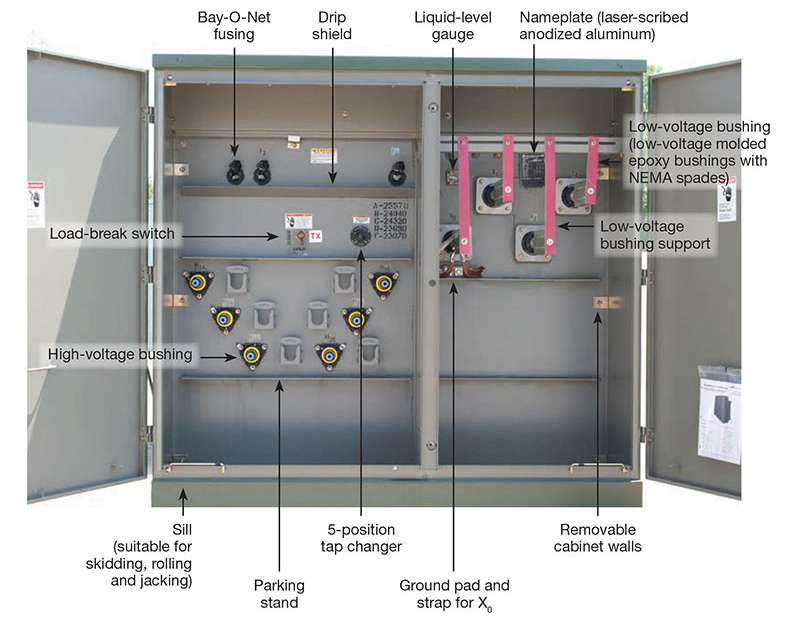

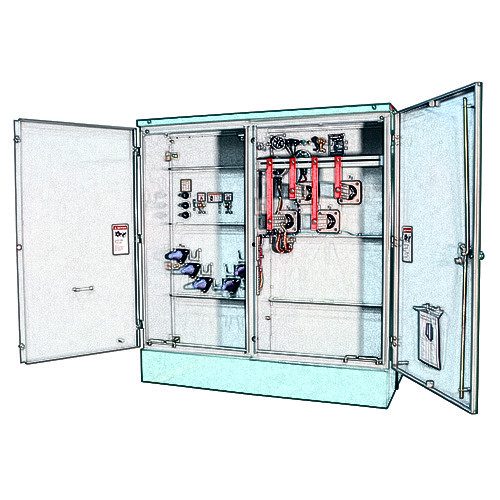

Externally Clamped HV / LV Bushings
Welded Cover with Handhole
Rectangular Coil Design
Tamper Proof Enclosure
Secondary Spade Connectors
Reinforced Steel Plate Tank
Base Suitable for Rolling or Skidding
Remote Sampling Device (RSD)
Stainless Steel Nameplate

Customer Visit

FAQ

Q: Are you a trading company?
A: No. Daelim is a transformer manufacturer.

Q: How long is your lead time?
A: Generally 7~8 weeks lead time for the quantity shorter than 10 units, 12~15 weeks for 100 units.

Q: What is the standard package?
A: Export standard package (Wooden box/Wooden pallet) or special package according to customer’s requirement.

Q: Which markets have you already sold your products to?
A: For Pad-mounted Transformers, we sold to Canada, USA, Mexico, Panama, Chile, Costa Rica, Honduras and etc.

Q: How long have you been working in the electric industry?
A: Daelim has been working in the international electric industry for nearly 25 years.

Q: Why should I choose Daelim?
A: We can offer faster lead time and better price than North American Suppliers and with full documentation. With a local service partner in the North American Market.
