Pad mounted Transformer Specification

Conection group	Dyn1/Ynyn0
Type	Loop Feed or Radial Feed
Capacity	50-5000kva
Primary Voltage	13800V/34500 V /24940V Delta/Wye
Winding Material	Cooper or Aluminium
Core Legs	3 or 5
Vector Group	DYN1 or YNYN0
Cooling Method	ONAN or KNAN
Warranty	24 Months

Three Phase Pad Mounted TransformerDescriptions

Three phase Pad Mounted Distribution Transformer can be designed to UL listed standards and feature fully enclosed tamper-resistant terminal compartments, available in pre-dead or pre-live configurations, for loop or radial feed applications, using mineral oil, or environmentally friendly Envirotemp™ FR3™.

2500kva Padmounted transformer

Jiangsu Daelim is distribution transformer manufacturer, has a team of more than 10 engineers with more than 20 years of experience in transformer design and the latest production equipment, so it has the ability to design and quickly deliver to meet any customer's transformer needs. Daelim’s three phase pad mounted distribution transformer can not only meet ANSI, IEEE, CSA IEC standards, but also meet DOE efficiency values.

Daelim as a distribution transformer factory has installation and after-sales teams.in North America and South America, such as the United States, Canada, Chile, Ecuador and other countries, so you don't have to worry about installation and after-sales problems. Three phase Pad Mounted Distribution Transformers are made with the highest quality materials and are widely used in commercial centers, airports, stations, schools, solar boost, manufacturing facilities, industrial applications and crypto mining/bit coin mining.

Daelim is distribution transformer supplier has provided effective power solutions for many crypto mining customers in the United States, Canada, and Venezuela, saving customers a lot of time and cost.If you also have three phase pad mounted distribution transformer needs, please contact us, Daelimcan provide you with an effective solution.

Three Phase Pad Mounted Distribution Transformer Types

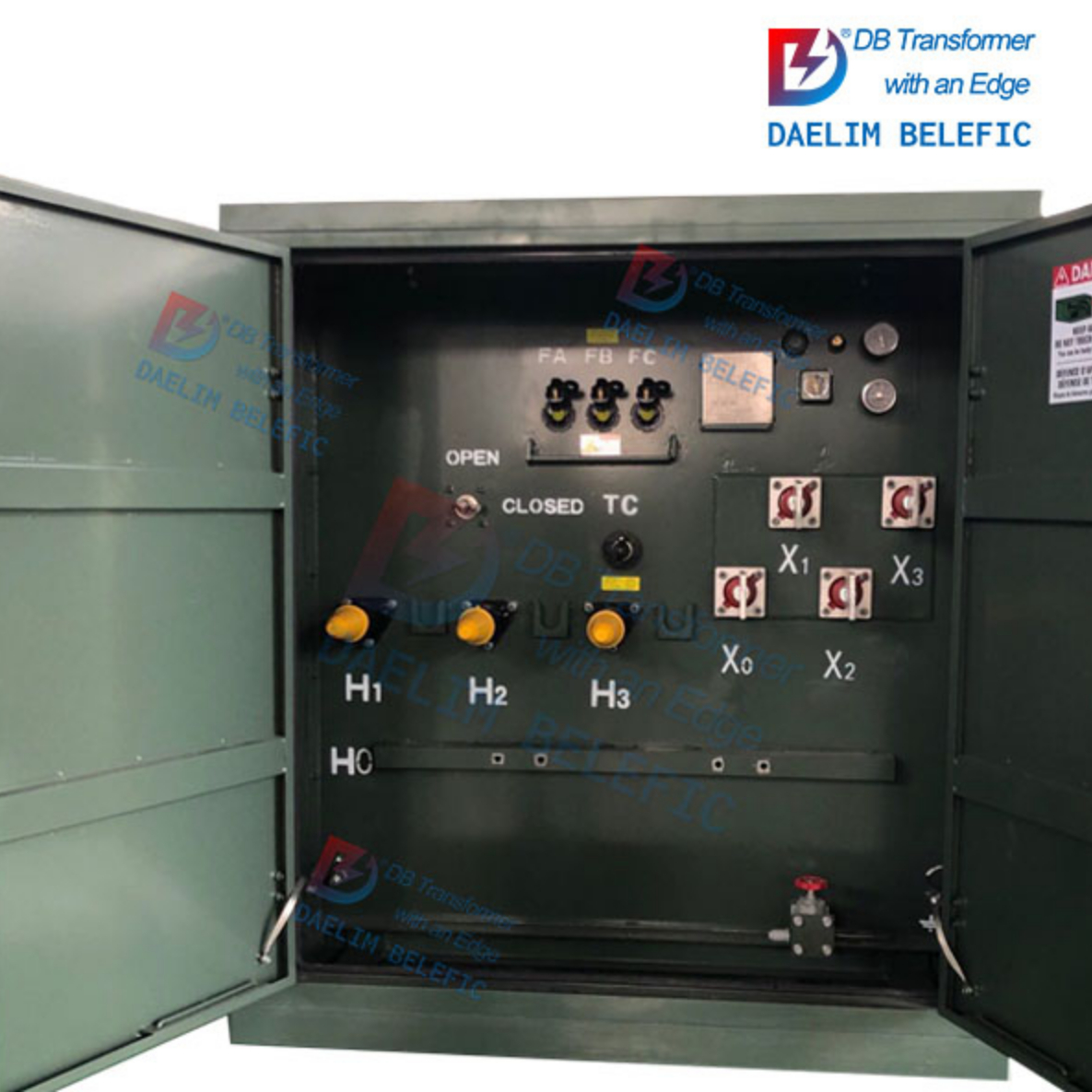

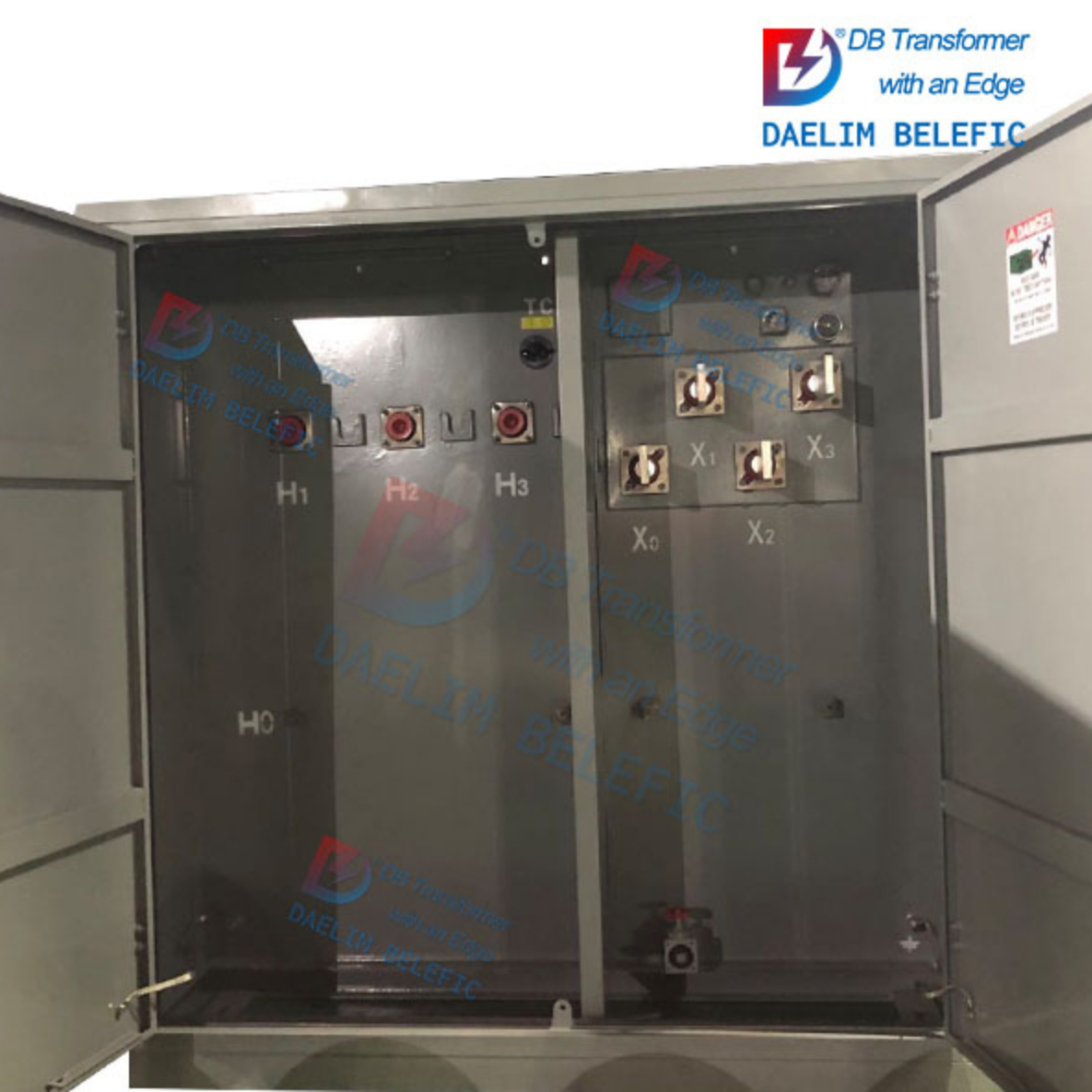

Daelim can produce two types of three phase Pad Mounted Distribution Transformer. Loop feed (hav 6 HV bushings) and Radial feed (have 3HV bushings). ELSP fuse, Bay-O-Net Fuse, LB switch, breaker are all available based on your needs.

Technical Specification Of Three Phase Pad Mounted Distribution Transformer

The following table is the standard three phase pad mounted distribution transformer parameters provided by our factory. Daelim can design and manufacture pad mounted transformers that meet CSA, ANSIIEEE and US DOE efficiency values. If you have special needs, you can contact us, and our professional engineers can give you design plans and outline drawings. If you need padmounted transformer catalogs, quality documents, services document, etc., you can download.

Rating	No Load Loss	On load Loss	W(mm)	D(mm)	H(mm)	Oil Weight(kg)	Tatal Weight(kg)
75kVA	180	1250	1390	910	1430	120	645
150kVA	280	2200	1510	980	1530	201	989
225kVA	400	3050	1600	1000	1660	230	1195
300kVA	480	3650	1660	1080	1680	260	1415
500kVA	680	5100	1810	1160	1790	325	1905
750kVA	980	7500	2030	1300	2030	535	2755
1000kVA	1150	10300	1651	1549	1854	650	3235
1250kVA	1360	12000	2100	1500	2050	680	4050
1500kVA	1640	14500	2210	1470	2150	748	4200
2000kVA	1940	18300	2380	1600	2220	850	4600
2500kVA	2500	25500	1730	2100	2300	1450	4900
2750kVA	2600	23600	1880	2300	2360	1800	6300
3000kVA	2730	27000	2400	2600	2400	2400	7000
3750kVA	3500	38000	2500	2700	2600	2800	7200

Three Phase Pad Mounted Distribution Transformer Core

In order to reduce turbine loss and hysteresis loss, Daelim use 0.27-0.35MM thick cold-rolled silicon steel sheet (grade 70, 80, 90) with lower unit loss as the iron core of the three phase pad moutned distribution transformer. And it adopts 45-degree multi-level full oblique stacking, which can not only reduce the no-load loss of the transformer for you, but also reduce the noise and improve the performance of the transformer.

Three Phase Pad Mounted Distribution Transformer Winding

The winding is the circuit part of the three phase pad moutned distribution transformer, which is generally made of copper or aluminum wire wrapped with insulating paper and then wound. Based on the your requirements for the technical parameters of the three phase pad mounted distribution transformer, Daelim use the copper wire or aluminum wire with the most suitable cross-sectional area to help you reduce costs while reducing the load loss of the transformer.

Features Of Three Phase Pad Mounted Distribution Transformer

1.Compact structure, small size, convenient installation, flexible maintenance and maintenance

2.Fully insulated, fully sealed structure, safe and reliable, and reliable protection of personal safety;

3.The high-voltage side is protected by double fuses, among which the fuse of the plug-in fuse is a double sensitive fuse (temperature, current), and the backup fuse is a current-limiting fuse, which reduces the operating cost;.

4.The high-voltage incoming line adopts the cable connector structure, which is fully insulated, safe and reliable, and easy to operate;

5.It can be used for both ring network and terminal, the conversion is very convenient, and the reliability of power supply is improved

6.The transformer is a three-phase three-column or three-phase five-column structure, and the iron core adopts a stepped seam process or a wound iron core process, which has low noise, low loss, and strong resistance to short circuit and overload.

7.Special process of vacuum drying and vacuum oil injection

8.The cabinet can adopt anti-corrosion design and special paint treatment according to the requirements of the operating environment, and has the functions of "three defenses", that is, anti-condensation, anti-salt spray, and anti-mold functions, and can meet the anti-corrosion requirements in high temperature and high humidity environments.

Test Of Three Phase Pad Mounted Distribution Transformer

Certificates of 2500kva pad mounted transformer

DAELIM’S three phase pad moutned distribution transformer has strict experimental test before shipment to ensure the quality of the transformer.Transformer routine experimental projects are of the following types:

1.Measurement of voltage ratio.

2. Measurement of winding resistance.（Routine）

3. No-load loss and no-load current test.

4. Load loss and Short circuit test.

5. Applied voltage test.

6. Induced Over Voltage Withstand Test

7. Insulation Resistance test

8. Other Information.

9. Leakage test（Routine）

10. Outer inspection

If you has other transformer experimental project requirements, we can also provide.

Certificates Of Three Phase Pad Mounted Distribution Transformer

Beijing Dalin has ISO9001 quality management system certification, ISO14001 environmental management system certification, ISO45001 occupational health and safety management system certification, product certificates and experimental reports, including CSA, SGS, UL, etc., to ensure the quality of three phase pad moutned distribution transformer from all aspects, To meet the needs of customers in the international market.

Accessories of 2500kva pad mounted transformer

Accessories Of Three Phase Pad Mounted Distribution Transformer

General three phase pad moutned distribution transformer accessories include: HV Bbushing; Bay-O-Net Fuse; Tap Changer; Load Break Switch; Parking Stand; Drain Valve; Oil Level Indicator; Pressure Relief valve; Pressure Indicator;.ELSP Fuse; Thermometer. Daelim can provide three phase pad mounted transformer accessories of international famous brands, such as qualitrol, ABB, etc. Daelim's three phase pad mounted ransformer accessories can meet CSA/ANSI/IEEE and other standards.

Packaging and Shipping Of Three Phase Pad Mounted Distribution Transformer.

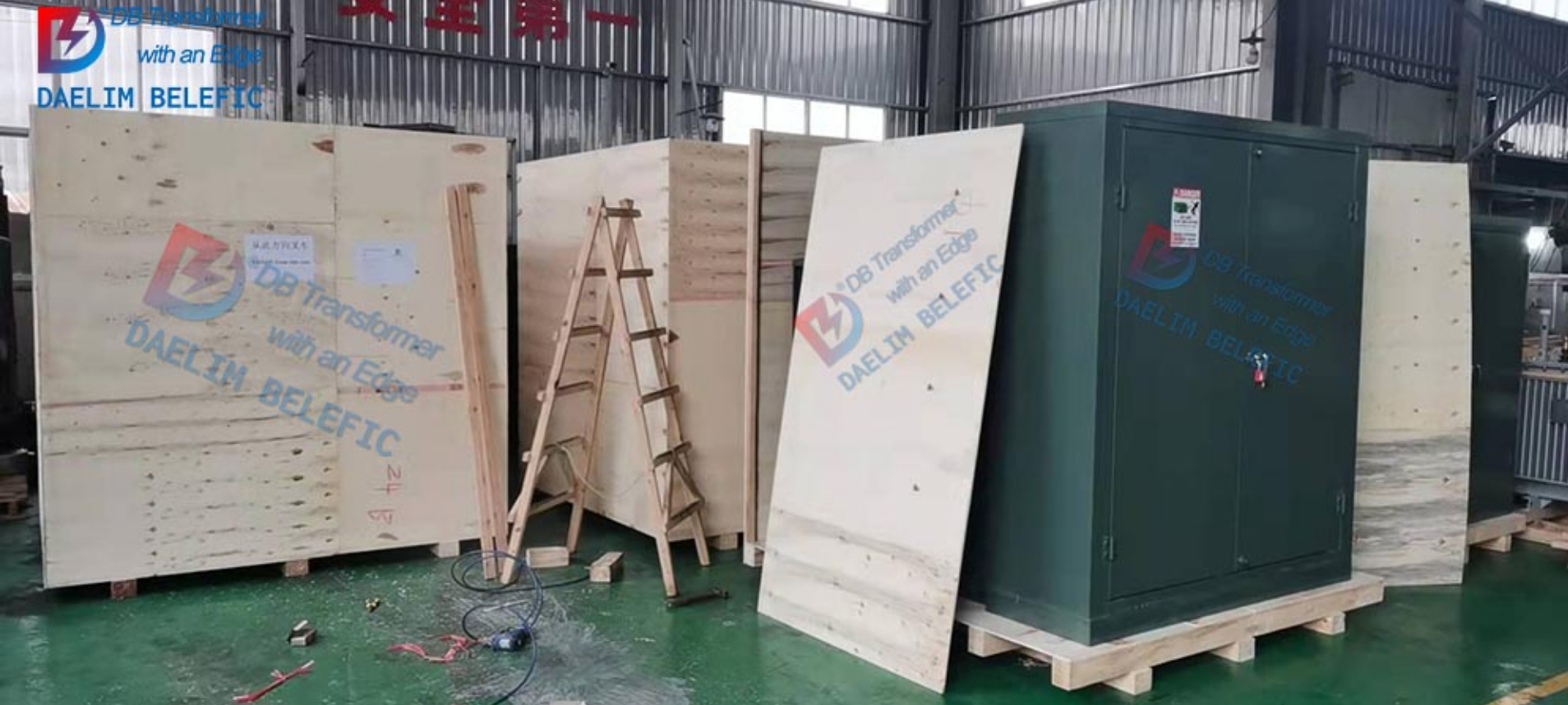

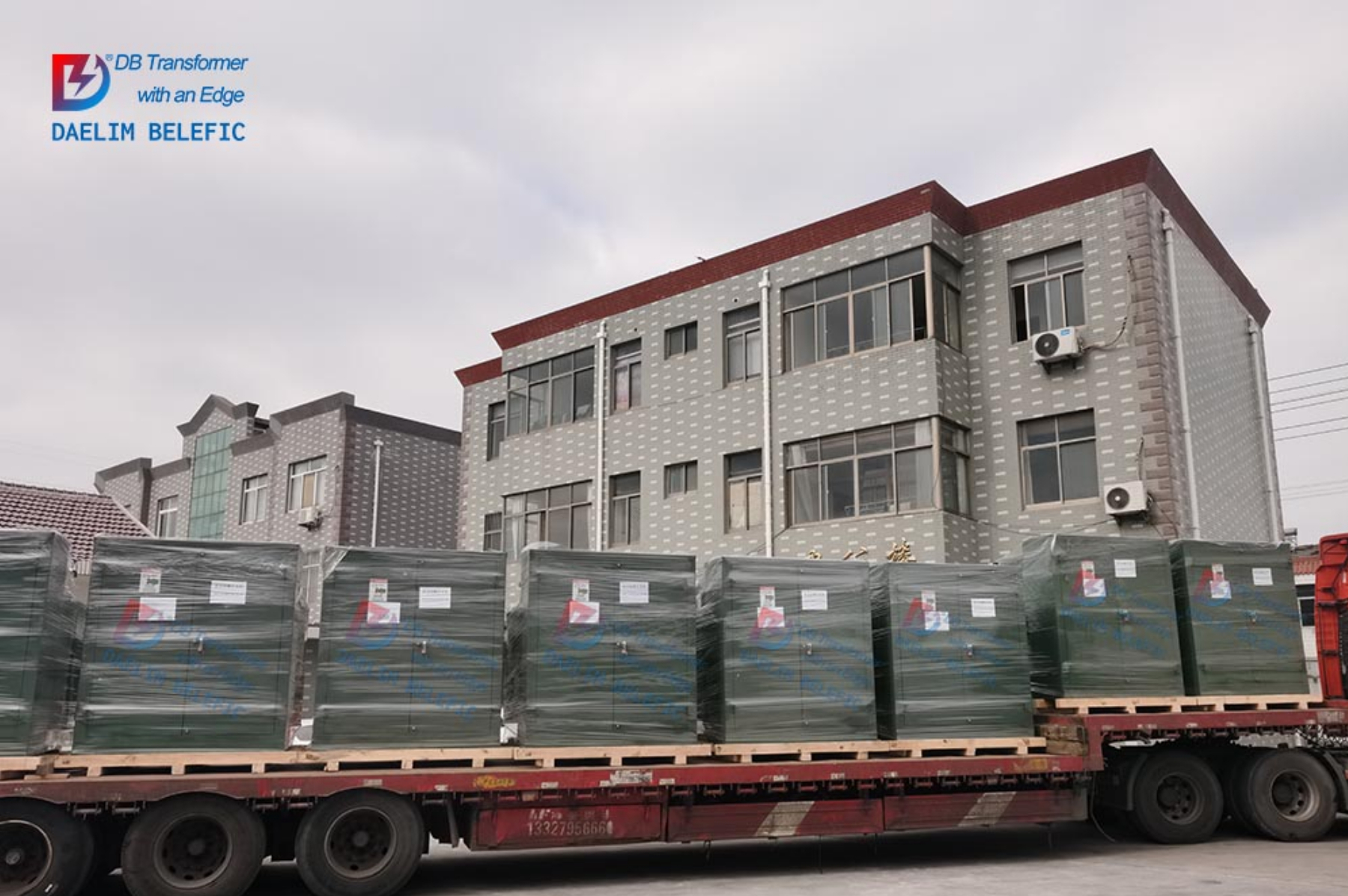

Jiangsu Daelim generally use wooden boxes with wooden pallets, and the solid wood used is fumigated to prevent corrosion and insects.Or more customer requirements for packaging and transportation. With nearly 20 years of transformer export experience, Daelim can help you deliver three phase pad moutned distribution transformer to your project quickly and safely.

Packing of 2500kva pad mounted transformer

Production capacity Of Three Phase Pad Mounted Distribution Transformer

Jiangsu Daelim have more than 100 workers and advanced production equipment, with monthly production capacity of more than 300 sets three phase pad mounted transformers.Fast delivery capability, generally 8-10 weeks.

Three Phase Pad Mounted Distribution Transformer project case and Sales Record

In the past two years, Delim has exported more than 1,000 sets pad mounted.transformers to the North American market, mainly in the United States and Canada. Many padmoutned transformers purchased by Daelim’s customers are used in Crypto Minings, and the number is relatively large.

Jiangsu Daelim also provides single phase pad mounted transformer, and exported hundreds of units to North America, so if you have any single phase padmounted transformer needs, please send them to us.
